Technical Specifications
Microchip MIC5321-GFYD6-TR technical specifications.
General
| Package/Case | SOT-23-6 |
| Dropout Voltage | 35mV |
| Min Current Limit | 300mA |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Regulators | 2 |
| Output Configuration | Positive |
| Output Current | 150mA |
| Output Type | Fixed |
| Output Voltage | 1.5V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 45dB |
| Quiescent Current | 190uA |
| RoHS Compliant | Yes |
Compliance
| RoHS | Not Compliant |
Datasheet
Microchip MIC5321-GFYD6-TR Datasheet
Download the complete datasheet for Microchip MIC5321-GFYD6-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

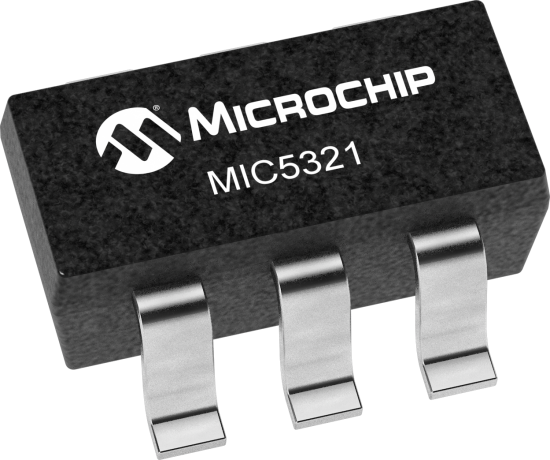

Product Images
