Technical Specifications
Microchip MIC5365-1.5YMT-TZ technical specifications.
General
Dropout Voltage
180mV
Lead Free
Lead Free
Min Current Limit
200mA
Max Input Voltage
5.5V
Min Input Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
150mA
Min Output Voltage
1.5V
Mount
Surface Mount
Number of Regulators
1
Output Configuration
Positive
Output Current
150mA
Output Type
Fixed
Output Voltage
1.5V
Package Quantity
10000
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
65dB
Quiescent Current
39uA
Compliance
RoHS
Compliant
Datasheet
Microchip MIC5365-1.5YMT-TZ Datasheet
Download the complete datasheet for Microchip MIC5365-1.5YMT-TZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

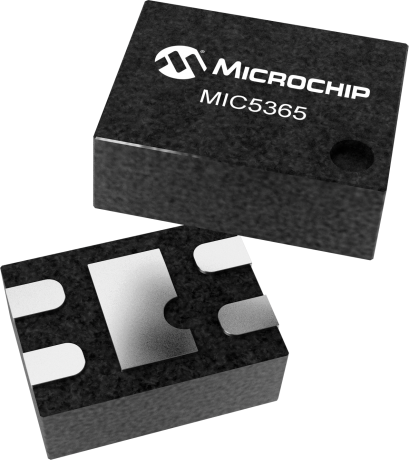

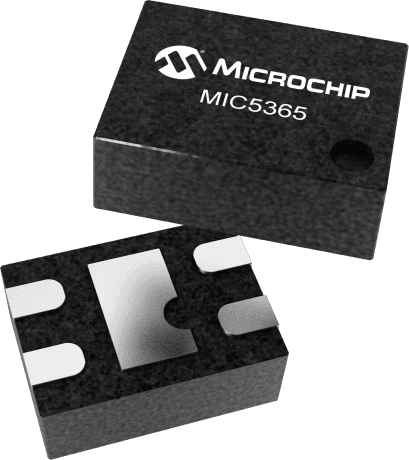

Product Images
