The MIC5366-1.0YMT-TZ is a single linear voltage regulator with a dropout voltage of 180mV. It can supply a maximum output current of 150mA and operates within a temperature range of -40°C to 125°C. The device is packaged in a surface mount configuration, suitable for automated assembly. It is designed to provide a stable output voltage of 1V.
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC5366-1.0YMT-TZ technical specifications.
General
| Dropout Voltage | 180mV |
| Min Current Limit | 200mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Regulators | 1 |
| Output Current | 150mA |
| Output Voltage | 1V |
| Packaging | Tape and Reel |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MIC5366-1.0YMT-TZ Datasheet
Download the complete datasheet for Microchip MIC5366-1.0YMT-TZ to view detailed technical specifications.
No datasheet is available for this part.

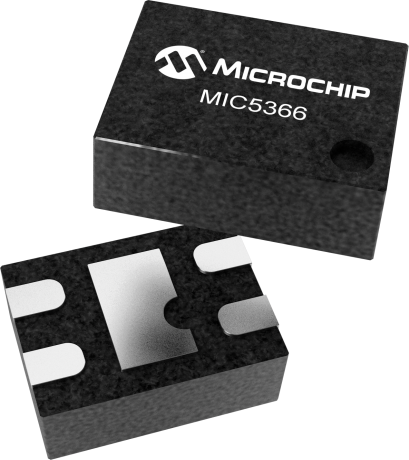

Product Images
