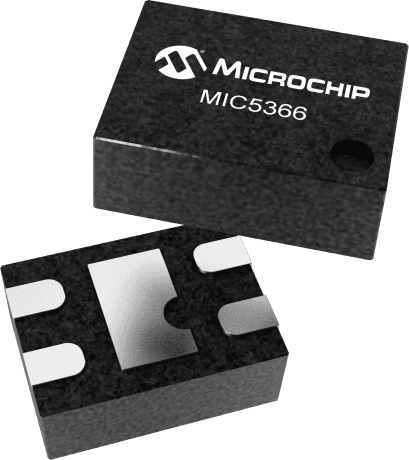

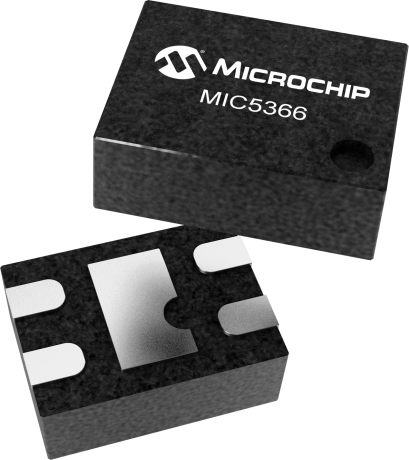

The MIC5366-1.2YMT-TZ is a single-output linear voltage regulator with a fixed output voltage of 1.2V and a maximum output current of 150mA. It operates from a maximum input voltage of 5.5V and features a dropout voltage of 180mV. The device is designed to operate over a temperature range of -40°C to 125°C. It is available in a surface mount package and is supplied on tape and reel. The MIC5366-1.2YMT-TZ is suitable for use in applications requiring a stable and efficient voltage supply.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MIC5366-1.2YMT-TZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MIC5366-1.2YMT-TZ technical specifications.
| Dropout Voltage | 180mV |
| Min Current Limit | 200mA |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 150mA |
| Output Type | Fixed |
| Output Voltage | 1.2V |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 80dB |
| RoHS | Compliant |
