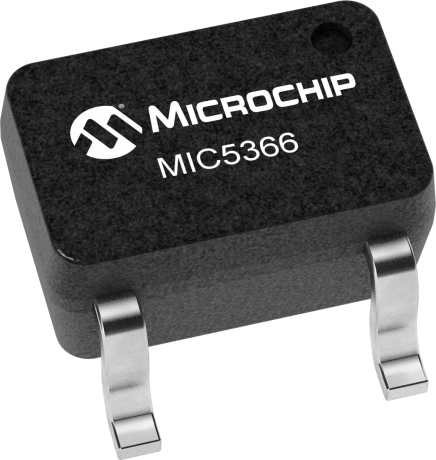

The MIC5366-2.8YC5-TR is a linear voltage regulator with a fixed output voltage of 2.8V and a maximum output current of 150mA. It operates over a temperature range of -40°C to 125°C and is available in a surface mount package. The device is RoHS compliant and features a power supply rejection ratio of 80dB. It can handle a maximum input voltage of 5.5V and a minimum input voltage of 2.5V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MIC5366-2.8YC5-TR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MIC5366-2.8YC5-TR technical specifications.
| Dropout Voltage | 155mV |
| Lead Free | Lead Free |
| Min Current Limit | 200mA |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 150mA |
| Min Output Voltage | 2.8V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 150mA |
| Output Type | Fixed |
| Output Voltage | 2.8V |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 80dB |
| RoHS Compliant | Yes |
| RoHS | Compliant |
Download the complete datasheet for Microchip MIC5366-2.8YC5-TR to view detailed technical specifications.
