MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC5366-3.0YC5-TR technical specifications.
General
Dropout Voltage
155mV
Lead Free
Lead Free
Min Current Limit
200mA
Max Input Voltage
5.5V
Min Input Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
150mA
Min Output Voltage
3V
Mount
Surface Mount
Number of Regulators
1
Output Configuration
Positive
Output Current
150mA
Output Type
Fixed
Output Voltage
3V
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
65dB
Quiescent Current
39uA
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip MIC5366-3.0YC5-TR Datasheet
Download the complete datasheet for Microchip MIC5366-3.0YC5-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

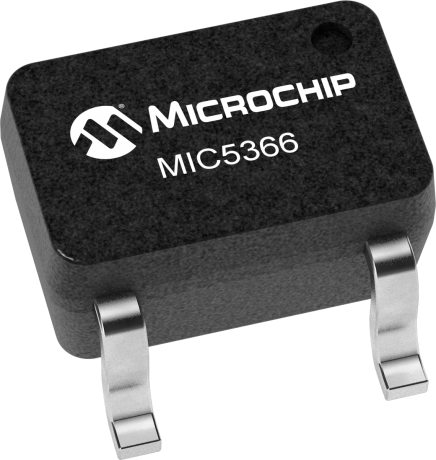

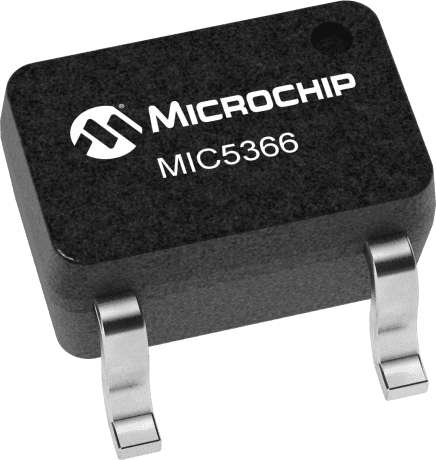

Product Images
