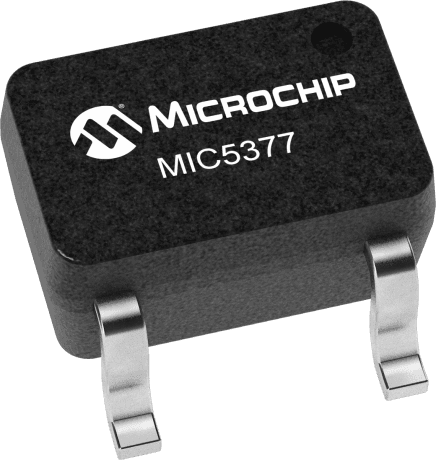

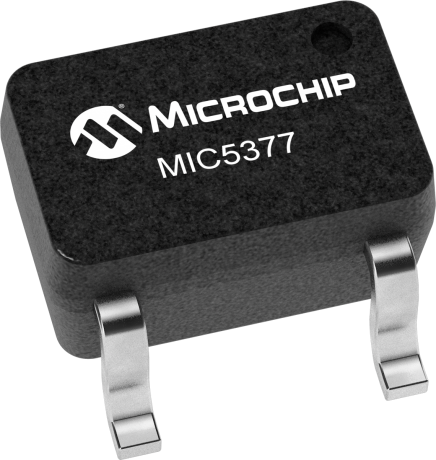

This linear voltage regulator is a single output, positive output, adjustable voltage regulator with a maximum output voltage of 5.3V and a maximum output current of 150mA. It operates over a temperature range of -40°C to 125°C and is available in a RoHS compliant SC-70 5-pin package. The regulator has a dropout voltage of 120mV and a quiescent current of 45uA. It is suitable for use in a variety of applications where a stable voltage is required.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MIC5377YC5-TR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MIC5377YC5-TR technical specifications.
| Package/Case | SC |
| Dropout Voltage | 120mV |
| Lead Free | Lead Free |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 150mA |
| Max Output Voltage | 5.3V |
| Min Output Voltage | 1V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 150mA |
| Output Type | Adjustable |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 50dB |
| Quiescent Current | 45uA |
| Reach SVHC Compliant | No |
| Reference Voltage | 1V |
| RoHS Compliant | Yes |
| RoHS | Compliant |
