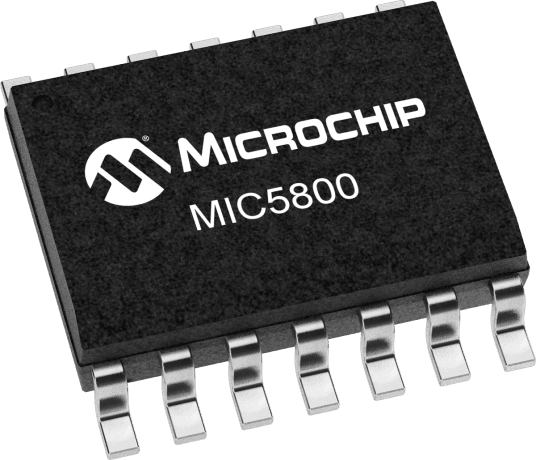

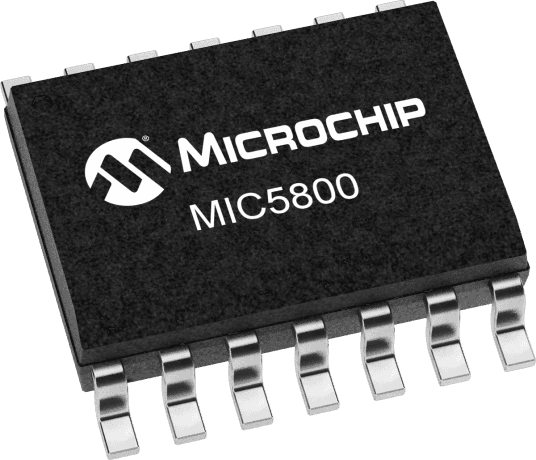

This latched driver IC features a parallel interface and a low-side output configuration, capable of driving up to 500mA per output. It operates within a voltage range of 5V to 12V, with a maximum output voltage of 50V. The component supports four input and four output lines, with a logic latch function. Packaged in a 14-pin SOIC surface-mount case, it offers a wide operating temperature range from -40°C to 85°C and is RoHS compliant.
Sign in to ask questions about the Microchip MIC5800YM-TR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MIC5800YM-TR technical specifications.
| Package/Case | SOIC |
| Height | 1.45mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 8.75mm |
| Logic Function | Latch |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Supply Voltage | 12V |
| Min Supply Voltage | 5V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Input Lines | 4 |
| Number of Output Lines | 4 |
| Number of Outputs | 4 |
| Output Configuration | Low Side |
| Output Current | 500mA |
| Output Voltage | 50V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 1mA |
| Width | 3.9mm |
| RoHS | Compliant |
