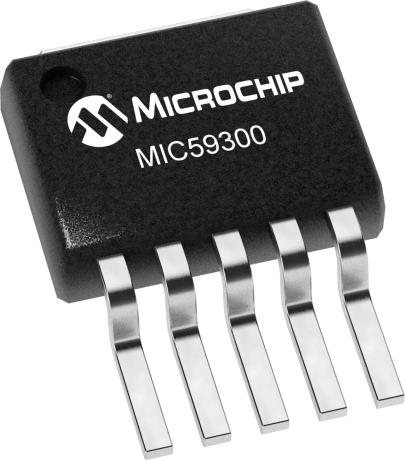

The MIC59300WU-TR is a single, surface-mount linear voltage regulator with an adjustable output voltage of 3.3V and a maximum output current of 3A. It operates over a temperature range of -40°C to 125°C and is compliant with RoHS regulations. The device has a dropout voltage of 205mV and a power supply rejection ratio of 55dB. It is available in a TO-263-5 package and is lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MIC59300WU-TR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MIC59300WU-TR technical specifications.
| Package/Case | TO-263-5 |
| Dropout Voltage | 205mV |
| Lead Free | Lead Free |
| Min Current Limit | 3.3A |
| Max Input Voltage | 3.8V |
| Min Input Voltage | 1V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3A |
| Max Output Voltage | 3.3V |
| Min Output Voltage | 500mV |
| Mount | Surface Mount |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 3A |
| Output Type | Adjustable |
| Output Voltage | 3.3V |
| Package Quantity | 750 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 55dB |
| RoHS Compliant | Yes |
| RoHS | Compliant |
