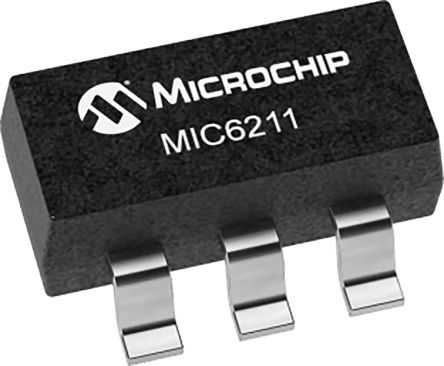

Single general-purpose operational amplifier with a 2.5MHz gain bandwidth product and 6V/µs slew rate. Features a 1.3mA operating supply current and 50mA output current per channel. This surface mount device is housed in a 5-pin SOT-23 package, supporting dual supply voltages from ±2V to ±16V and single supply voltages from 4V to 32V. Offers 45dB common mode rejection ratio and 65dB power supply rejection ratio.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MIC6211YM5-TR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MIC6211YM5-TR technical specifications.
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 2.5MHz |
| Package/Case | SOT-23 |
| Common Mode Rejection Ratio | 45dB |
| Dual Supply Voltage | 9V |
| Gain Bandwidth Product | 2.5MHz |
| Height | 1.1mm |
| Input Bias Current | 250nA |
| Input Offset Voltage (Vos) | 7mV |
| Input Offset Voltage-Max | 7mV |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Max Dual Supply Voltage | 16V |
| Min Dual Supply Voltage | 2V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 32V |
| Min Supply Voltage | 4V |
| Mount | Surface Mount |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 1.3mA |
| Output Current per Channel | 50mA |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 65dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Series | IttyBitty® |
| Slew Rate | 6V/µs |
| Slew Rate-Nom | 6V/µs |
| Supply Current | 2mA |
| Technology | BIPOLAR |
| Voltage Gain | 104.61dB |
| Width | 1.6mm |
| RoHS | Compliant |
