Adjustable positive LDO regulator, 1.65V to 5.5V input voltage range, delivering up to 4A output current. Features a 360mV dropout voltage at 3A output. Operates from -40°C to 125°C in a VQFN package. Surface mountable and supplied on tape and reel. RoHS compliant.
PackageVQFN
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MIC68400YML-TR technical specifications.
General
| Package/Case | VQFN |
| Dropout Voltage | 360mV |
| Min Current Limit | 4A |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 1.65V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 4A |
| Mount | Surface Mount |
| Number of Regulators | 1 |
| Output Current | 3A |
| Output Voltage | 5.5V |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MIC68400YML-TR Datasheet
Download the complete datasheet for Microchip MIC68400YML-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

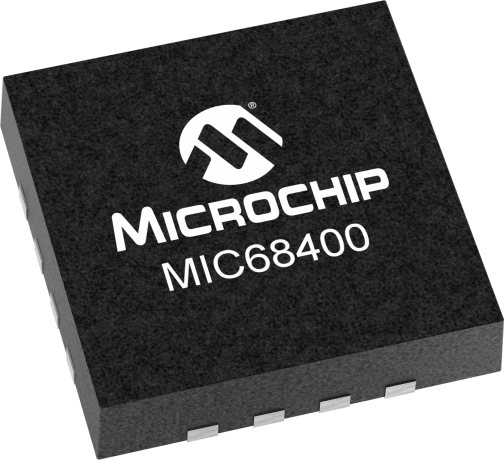

Product Images
