The MIC803-30D4VM3-TR is a simple reset/power-on reset circuit with a single voltage monitoring capability. It operates over a temperature range of -40°C to 125°C and is available in a lead-free SOT-23-3 package. The device has a low operating supply current of 4.5uA and a reset timeout of 1.12 seconds. It is RoHS compliant and suitable for surface mount applications.
PackageSOT-23-3
Current4.5uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC803-30D4VM3-TR technical specifications.
General
| Package/Case | SOT-23-3 |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 4.5uA |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| Reset | Active Low |
| Reset Timeout | 1.12s |
| RoHS Compliant | Yes |
| Supply Current | 4.5uA |
| Threshold Voltage | 3V |
| Type | Simple Reset/Power-On Reset |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MIC803-30D4VM3-TR Datasheet
Download the complete datasheet for Microchip MIC803-30D4VM3-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

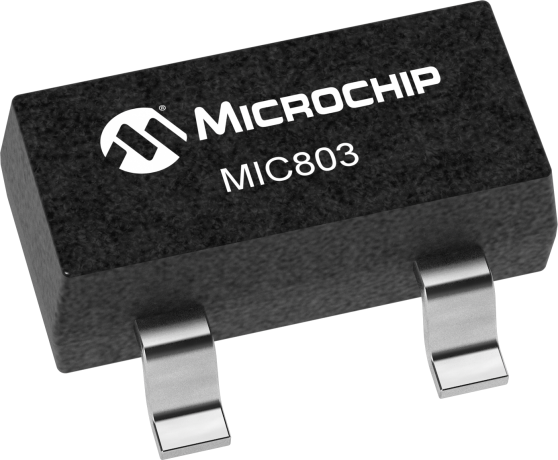

Product Images
