The MIC803-46D3VC3-TR is a simple reset/power-on reset IC from Microchip, operating within a temperature range of -40°C to 125°C. It has a low operating supply current of 4.5uA and a threshold voltage of 4.63V. This device is RoHS compliant and available in a Tape and Reel packaging. It is designed for surface mount applications and features an active low reset signal with a timeout of 140ms.
PackageSC
Current18uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC803-46D3VC3-TR technical specifications.
General
| Package/Case | SC |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Min Reset Threshold Voltage | 4.44V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 4.5uA |
| Packaging | Tape and Reel |
| Reset | Active Low |
| Reset Timeout | 140ms |
| RoHS Compliant | Yes |
| Supply Current | 18uA |
| Threshold Voltage | 4.63V |
| Type | Simple Reset/Power-On Reset |
| Watchdog Timer | No |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MIC803-46D3VC3-TR Datasheet
Download the complete datasheet for Microchip MIC803-46D3VC3-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

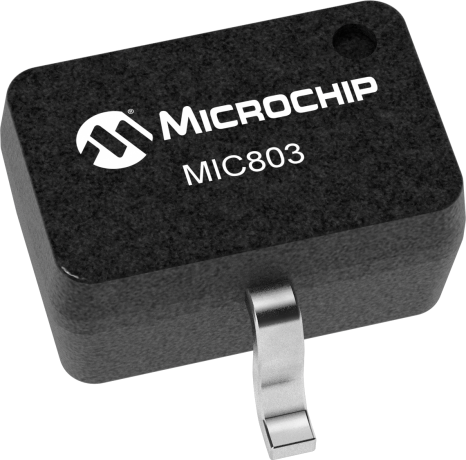

Product Images
