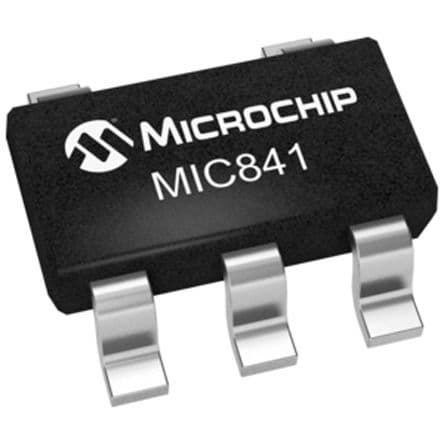

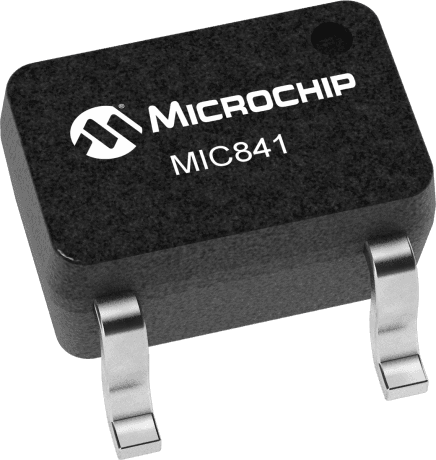

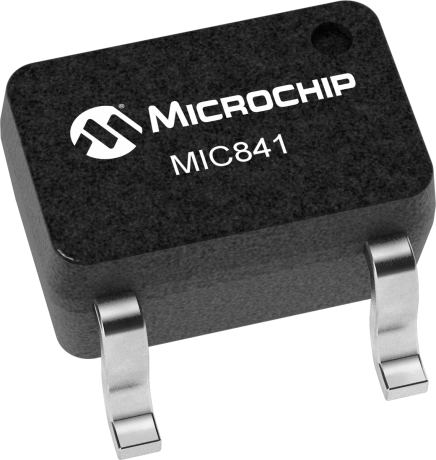

Single-channel comparator IC featuring BICMOS technology, designed for surface mount applications within a 1.5V to 5.5V operating supply voltage range. This component offers a 20mV hysteresis, 20mA output current, and a push-pull output type. Packaged in a compact 5-pin SC-70 (1mm height, 2.2mm length, 1.35mm width) on tape and reel, it operates from -40°C to 85°C with a low 3µA quiescent current.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MIC841HYC5-TR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MIC841HYC5-TR technical specifications.
| Package/Case | SC |
| Height | 1mm |
| Hysteresis | 20mV |
| Lead Free | Lead Free |
| Length | 2.2mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 10nA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.5V |
| Mount | Surface Mount |
| Natural Thermal Resistance | 256.5°C/W |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 5V |
| Output Current | 20mA |
| Output Current per Channel | 20mA |
| Output Type | PUSH-PULL |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Propagation Delay | 12us |
| Quiescent Current | 3uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Response Time | 12us |
| RoHS Compliant | Yes |
| Series | Teeny™ |
| Supply Current | 3uA |
| Technology | BICMOS |
| Turn-On Delay Time | 50us |
| Width | 1.35mm |
| RoHS | Compliant |
