Single-channel comparator IC, surface mountable in a compact 2.2mm x 1.35mm x 1mm SC package. Features 20mV hysteresis, 3uA quiescent current, and a 12us propagation delay. Operates from a 1.5V to 5.5V supply voltage with a maximum supply current of 3uA. Suitable for applications requiring fast switching and low power consumption.
PackageSC
Current3uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC842NYC5-TR technical specifications.
General
| Package/Case | SC |
| Height | 1mm |
| Hysteresis | 20mV |
| Lead Free | Lead Free |
| Length | 2.2mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 3uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.5V |
| Mount | Surface Mount |
| Natural Thermal Resistance | 256.5°C/W |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current | 20mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Propagation Delay | 12us |
| Quiescent Current | 3uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Response Time | 12us |
| RoHS Compliant | Yes |
| Series | Teeny™ |
| Supply Current | 3uA |
| Technology | BICMOS |
| Width | 1.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MIC842NYC5-TR Datasheet
Download the complete datasheet for Microchip MIC842NYC5-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

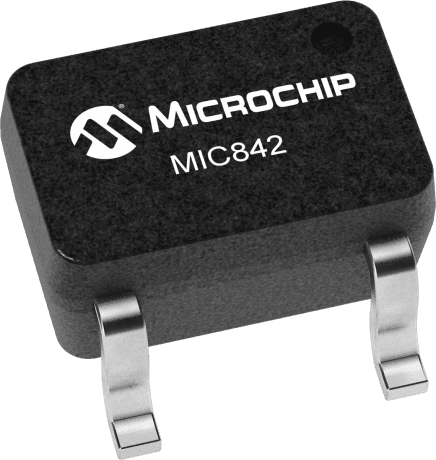

Product Images
