High-side power switch IC with 3A rated current, featuring a 1.7V to 5.5V input voltage range and 28mΩ on-state resistance. This surface-mount component offers a single output and an on/off interface. Packaged in a 1.2mm x 1.2mm x 0.75mm DFN package, it operates from -40°C to 125°C and is RoHS compliant.
PackageDFN
Current3A
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC94043YFLTR technical specifications.
General
Package/Case
DFN
Height
0.75mm
Interface
On/Off
Lead Free
Lead Free
Length
1.2mm
Max Input Voltage
5.5V
Min Input Voltage
1.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Mount
Surface Mount
Number of Outputs
1
On-State Resistance
28mR
On-state Resistance-Max
55MR
Output Configuration
High Side
Output Current
3A
Package Quantity
5000
Packaging
Tape and Reel
Radiation Hardening
No
Rated Current-Max
3A
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
3A
Width
1.2mm
Compliance
RoHS
Compliant
Datasheet
Microchip MIC94043YFLTR Datasheet
Download the complete datasheet for Microchip MIC94043YFLTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

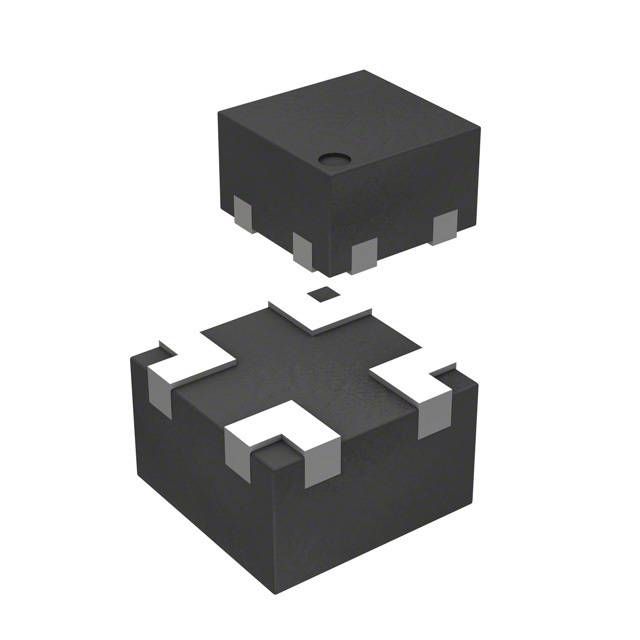

Product Images
