High-side peripheral driver IC featuring a single output capable of delivering up to 2A. This surface mount component offers an on/off interface with a maximum on-state resistance of 67mΩ. Operating across a wide temperature range from -40°C to 125°C, it is RoHS compliant and lead-free. Supplied in a 4-pin LLCC plastic package on tape and reel.
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC94085YFT-TR technical specifications.
General
| Interface | On/Off |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2A |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| On-state Resistance-Max | 67MR |
| Output Configuration | High Side |
| Output Current | 2A |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Rated Current-Max | 2A |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MIC94085YFT-TR Datasheet
Download the complete datasheet for Microchip MIC94085YFT-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

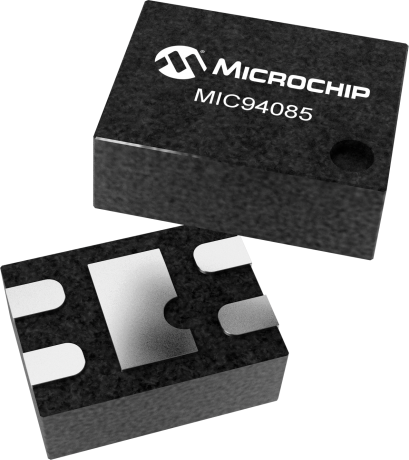

Product Images
