The MIC94092YMT-TR is a high side driver with a maximum output current of 1.2A and on-state resistance of 225mR. It operates within a temperature range of -40°C to 125°C and is compliant with RoHS regulations. The device is packaged in a lead-free MLF-4 package and is available in tape and reel packaging with a quantity of 5000 units.
Quick Jump:
Technical Specifications
Microchip MIC94092YMT-TR technical specifications.
General
| Interface | On/Off |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.2A |
| Number of Outputs | 1 |
| On-state Resistance-Max | 225MR |
| Output Configuration | High Side |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Rated Current-Max | 1.2A |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MIC94092YMT-TR Datasheet
Download the complete datasheet for Microchip MIC94092YMT-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

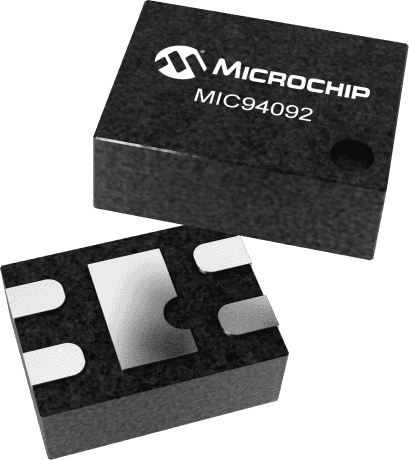

Product Images
