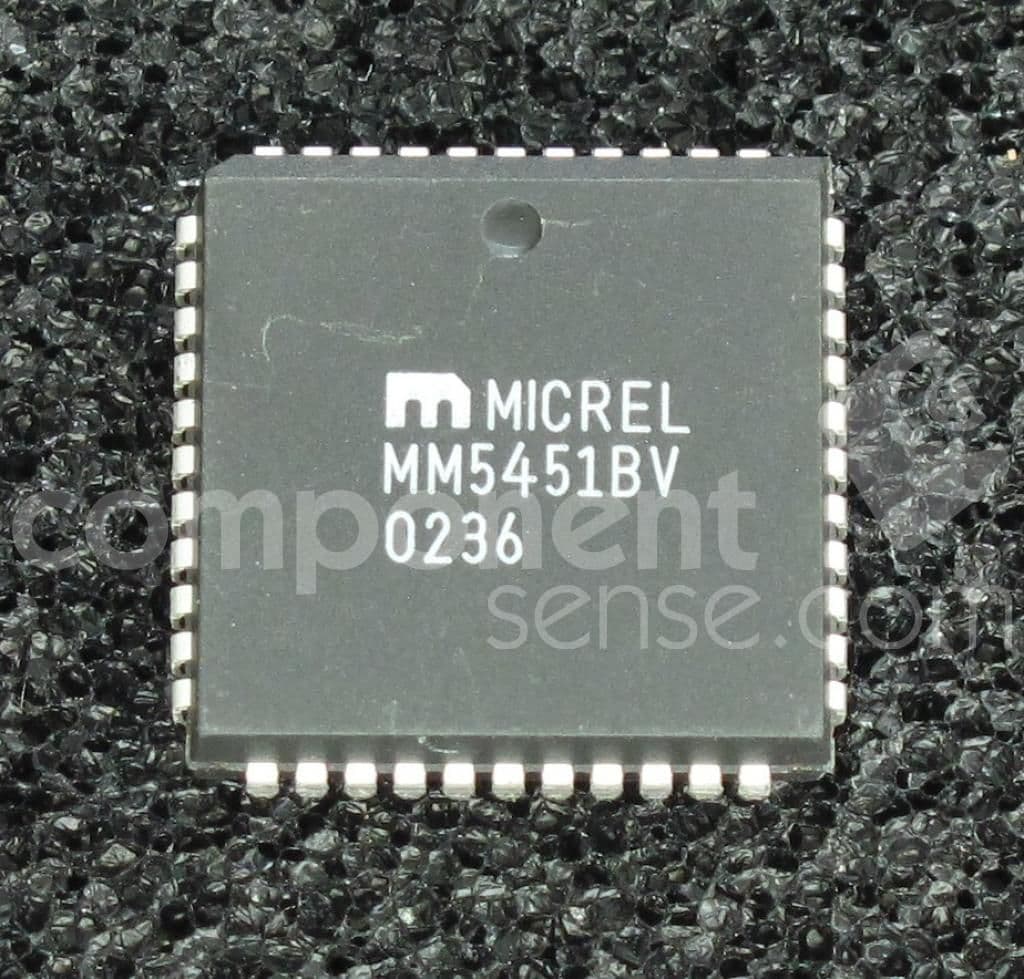

The MM5451BV is a serial interface IC with a package type of PLCC-44. It operates within a temperature range of -40°C to 85°C and has a supply voltage range of 4.75V to 11V. The device has a maximum supply current of 10mA. It is suitable for surface mount applications.
PackagePLCC
Current10mA
MountingSurface Mount
Power1W
Quick Jump:
Technical Specifications
Microchip MM5451BV technical specifications.
General
| Package/Case | PLCC |
| Interface | Serial |
| Lead Free | Contains Lead |
| Low Level Output Current | 25mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 10mA |
| Max Supply Voltage | 11V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Operating Supply Current | 10mA |
| Package Quantity | 26 |
| Packaging | Rail/Tube |
| Power Dissipation | 1W |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Supply Current | 10mA |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Microchip MM5451BV Datasheet
Download the complete datasheet for Microchip MM5451BV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
