2.4GHz wireless module for telecom applications, featuring a 250Kbps data rate and 20dBm output power. Operates across a 2.4V to 3.6V supply voltage range with a sensitivity of -102dBm. Interface options include SPI and 4-wire, with a surface mount package measuring 33.02mm x 22.86mm x 1.73mm. This RoHS compliant component supports an operating temperature range of -40°C to 85°C.
Frequency2.4GHz
PackageModule
Current130mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MRF24J40MB-I/RM technical specifications.
General
Package/Case
Module
Current - Receiving
25mA
Current - Transmitting
130mA
Data Rate
250Kbps
Evaluation Kit
Yes
Frequency
2.4GHz
Height
1.73mm
Interface
SPI, 4-WIRE
Lead Free
Lead Free
Length
33.02mm
Max Frequency
2.483GHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.4V
Mount
Surface Mount
Output Power (dBm)
20dBm
Package Quantity
40
Packaging
Tray
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sensitivity
-102dBm
Supply Current
130mA
Width
22.86mm
Compliance
RoHS
Compliant
Datasheet
Microchip MRF24J40MB-I/RM Datasheet
Download the complete datasheet for Microchip MRF24J40MB-I/RM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

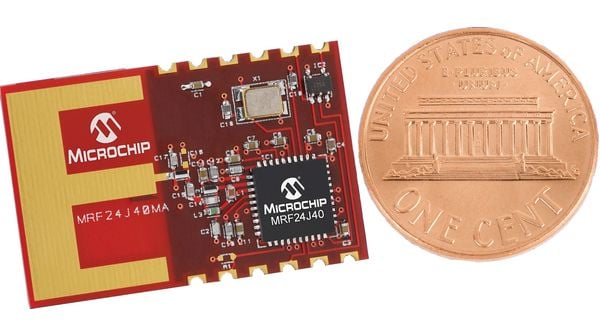

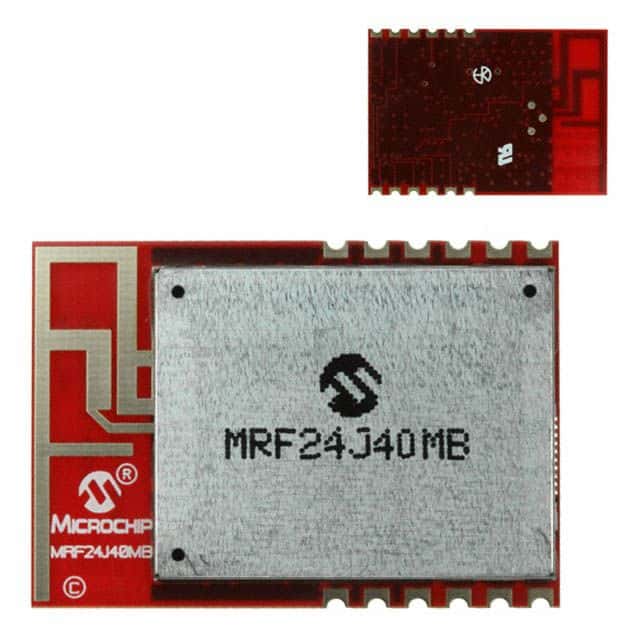

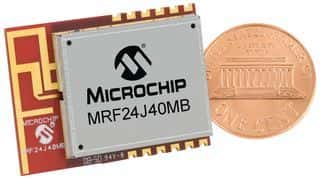

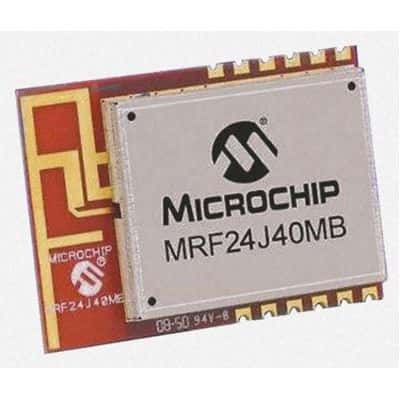

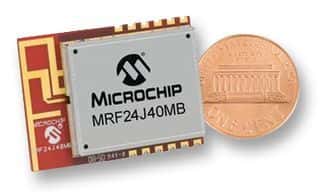

Product Images
