2.4GHz wireless module featuring SPI interface and 4-wire communication. Delivers 19dBm output power with a sensitivity of -108dBm, supporting data rates up to 250Kbps. Operates across a frequency range of 2.405GHz to 2.475GHz. Designed for surface mounting with a module package, this RoHS compliant component operates from 2.7V to 3.6V, drawing 25mA in receive and 120mA in transmit modes.
Frequency2.4GHz
PackageModule
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MRF24J40MC-I/RM technical specifications.
General
Package/Case
Module
Current - Receiving
25mA
Current - Transmitting
120mA
Data Rate
250Kbps
Frequency
2.4GHz
Height
0.132inch
Interface
SPI, 4-WIRE
Lead Free
Lead Free
Length
1.3inch
Max Frequency
2.475GHz
Min Frequency
2.405GHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.7V
Mount
Surface Mount
Output Power (dBm)
19dBm
Package Quantity
40
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sensitivity
-108dBm
Width
0.9inch
Compliance
RoHS
Compliant
Datasheet
Microchip MRF24J40MC-I/RM Datasheet
Download the complete datasheet for Microchip MRF24J40MC-I/RM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

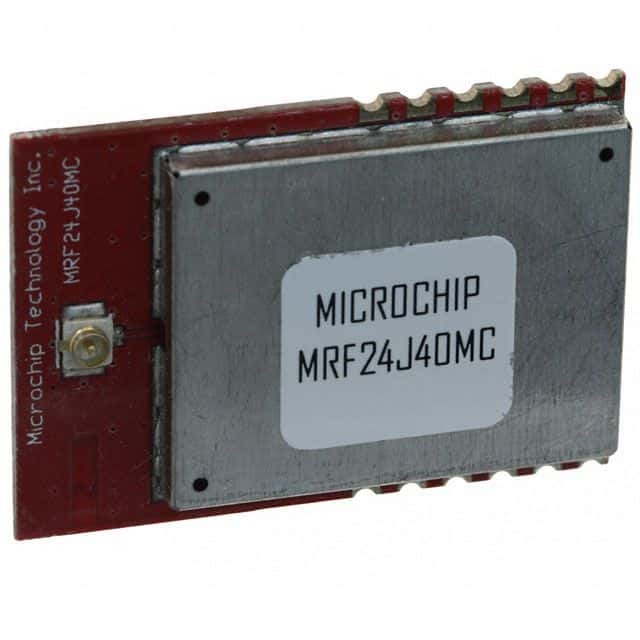

Product Images
