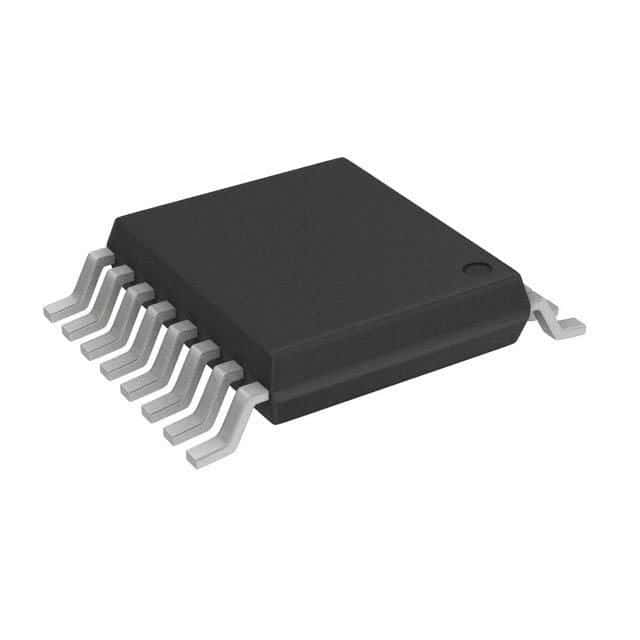

This telecom IC is a surface-mount, TSSOP-16 packaged device featuring a 915MHz frequency band with a minimum operating frequency of 900.72MHz and a maximum of 929.27MHz. It supports a data rate of 256Kbps via an SPI interface and offers a sensitivity of -110dBm. The component includes one receiver and two transmitters, with output power at 7dBm. Operating supply voltage is 3.3V, with a range of 2.2V to 3.8V, and current consumption is 11mA for receiving and 15mA for transmitting. This lead-free, RoHS-compliant integrated circuit operates within a temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MRF49XA-I/ST datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MRF49XA-I/ST technical specifications.
| Package/Case | TSSOP |
| Current - Receiving | 11mA |
| Current - Transmitting | 15mA |
| Data Rate | 256Kbps |
| Depth | 4.4mm |
| Frequency | 915MHz |
| Height | 1.05mm |
| Interface | SPI |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Frequency | 929.27MHz |
| Min Frequency | 900.72MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.8V |
| Min Supply Voltage | 2.2V |
| Mount | Surface Mount |
| Number of Receivers | 1 |
| Number of Transmitters | 2 |
| Operating Supply Voltage | 3.3V |
| Output Power (dBm) | 7dBm |
| Package Quantity | 96 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sensitivity | -110dBm |
| Series | Wireless Connectivity |
| Weight | 0.006102oz |
| Width | 4.5mm |
| RoHS | Compliant |
