FSK/OOK RF Transceiver IC operating at 3.3V. Features a 902MHz to 928MHz frequency range with a maximum output power of 12.5dBm and a sensitivity of -113dBm. Supports data rates up to 200Kbps via SPI interface. Housed in a 32-pin VQFN EP package, this RoHS compliant component operates from 2.1V to 3.6V supply voltage and across a -40°C to 85°C temperature range.
Frequency960MHz
PackageQFN
Quick Jump:
Technical Specifications
Microchip MRF89XAT-I/MQ technical specifications.
General
| Package/Case | QFN |
| Current - Receiving | 3mA |
| Current - Transmitting | 25mA |
| Data Rate | 200Kbps |
| Depth | 5mm |
| Frequency | 960MHz |
| Height | 0.75mm |
| Interface | SPI |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Frequency | 928MHz |
| Min Frequency | 902MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.1V |
| Number of Channels | 59 |
| Operating Supply Voltage | 3.3V |
| Output Power (dBm) | 12.5dBm |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sensitivity | -113dBm |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MRF89XAT-I/MQ Datasheet
Download the complete datasheet for Microchip MRF89XAT-I/MQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

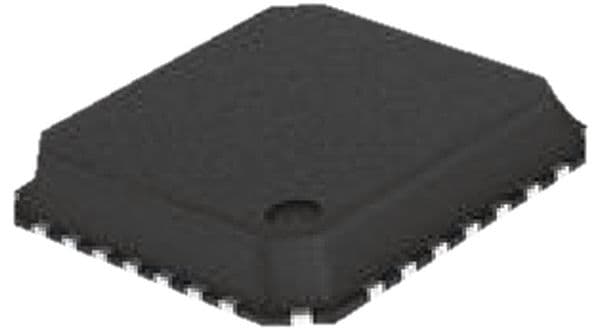

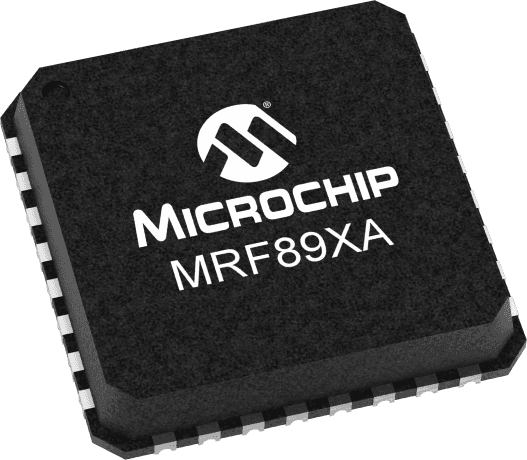

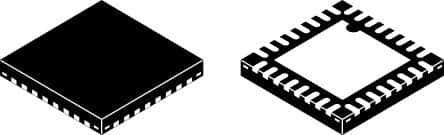

Product Images
