1-channel supervisory circuit for monitoring 3V to 5.5V input voltages. Features 1% accuracy, 80dB common mode rejection ratio, and a compact 3.1mm x 3.1mm x 0.85mm DFN surface-mount package. Operates across a -40°C to 85°C temperature range with a maximum supply current of 900uA and a quiescent current of 360uA. Supplied in tape and reel packaging.
PackageDFN
Current360uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PAC1710-1-AIA-TR technical specifications.
General
Accuracy
1%
Package/Case
DFN
Common Mode Rejection Ratio
80dB
Height
0.85mm
Length
3.1mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
900uA
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Channels
1
Output Type
Digital
Package Quantity
4000
Packaging
Tape and Reel
Quiescent Current
360uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
360uA
Width
3.1mm
Compliance
RoHS
Compliant
Datasheet
Microchip PAC1710-1-AIA-TR Datasheet
Download the complete datasheet for Microchip PAC1710-1-AIA-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

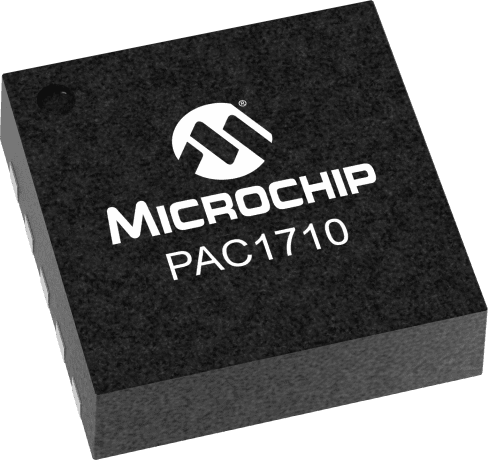

Product Images
