8-bit RISC microcontroller featuring 4MHz internal oscillator and 384B FLASH memory. This PDIP-8 packaged MCU offers 4 programmable I/Os, 1 timer/counter, and includes POR and WDT peripherals. Operating voltage ranges from 2V to 5.5V with a maximum power dissipation of 800mW. Designed for through-hole mounting, it boasts an 8-bit address and data bus, with 16B RAM.
Frequency4MHz
PackagePDIP
Current175uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC10F200-I/P technical specifications.
General
Access Time
4us
Address Bus Width
8b
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Height
0.195inch
Lead Free
Lead Free
Length
10.16mm
Max Frequency
4MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
384B
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Through Hole
Number of Bits
8
Number of I/Os
4
Number of Programmable I/O
4
Number of Timers/Counters
1
Oscillator Type
Internal
Package Quantity
60
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
16B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 10F
Supply Current
175uA
Watchdog Timer
Yes
Width
0.28inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC10F200-I/P Datasheet
Download the complete datasheet for Microchip PIC10F200-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

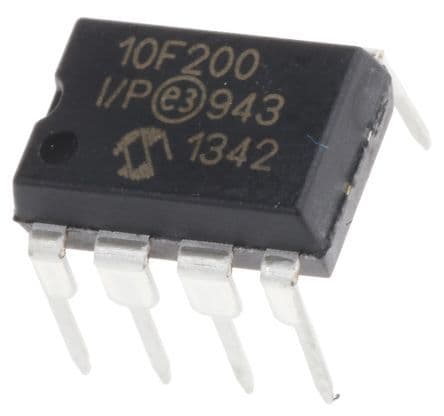

Product Images
