8-bit RISC microcontroller featuring 4MHz clock speed and 384B FLASH memory. This surface mount device offers 4 programmable I/Os, an internal oscillator, and a watchdog timer. Operating from 2V to 5.5V, it includes POR and WDT peripherals and a 16B RAM. Packaged in a 6-pin SOT-23, it supports a temperature range of -40°C to 125°C.
Frequency4MHz
PackageSOT-23
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC10F200T-E/OT technical specifications.
General
Access Time
4us
Package/Case
SOT-23
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Height
1.3mm
Interface
USB
Lead Free
Lead Free
Length
3.1mm
Max Frequency
4MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
384B
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of I/Os
4
Number of Programmable I/O
4
Number of Timers/Counters
1
Oscillator Type
Internal
Package Quantity
3000
Packaging
Tape and Reel
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
16B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
1.8mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC10F200T-E/OT Datasheet
Download the complete datasheet for Microchip PIC10F200T-E/OT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

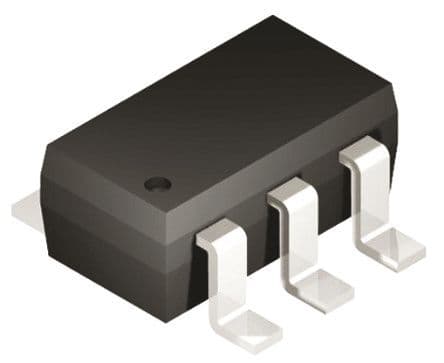

Product Images
