8-bit RISC microcontroller featuring 8MHz clock speed and 384B FLASH memory. This surface mount device offers 4 programmable I/O pins, 1 timer/counter, and an internal oscillator. Operating within a 2V to 5.5V supply range, it supports a maximum power dissipation of 800mW and operates from -40°C to 125°C. Includes POR and WDT peripherals.
Frequency8MHz
PackageSOT-23
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC10F220T-E/OT technical specifications.
General
Access Time
8us
Package/Case
SOT-23
Core Architecture
PIC
Data Bus Width
8b
Frequency
8MHz
Interface
USB
Lead Free
Lead Free
Max Frequency
8MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
384B
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of Programmable I/O
4
Number of Timers/Counters
1
Oscillator Type
Internal
Package Quantity
3000
Packaging
Tape and Reel
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
16B
Series
PIC® 10F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC10F220T-E/OT Datasheet
Download the complete datasheet for Microchip PIC10F220T-E/OT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

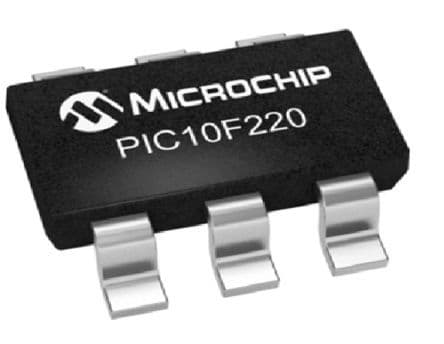

Product Images
