8-bit RISC microcontroller featuring 8MHz internal oscillator and 384 Bytes of FLASH memory. This surface mount device offers 4 programmable I/Os, 2 ADC channels, and a watchdog timer. Operating from 2V to 5.5V, it supports USB interface and has a max power dissipation of 800mW. Packaged in a SOT-23 case, it is lead-free and RoHS compliant.
Frequency8MHz
PackageSOT-23
Current175uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC10F220T-I/OT technical specifications.
General
Access Time
8us
Address Bus Width
8b
Package/Case
SOT-23
Core Architecture
PIC
Data Bus Width
8b
Density
0.375KB
Frequency
8MHz
Height
1.3mm
Interface
USB
Lead Free
Lead Free
Length
3.1mm
Max Frequency
8MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
384B
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
2
Number of Bits
8
Number of I/Os
4
Number of Programmable I/O
4
Number of Timers/Counters
1
Oscillator Type
Internal
Package Quantity
3000
Packaging
Tape and Reel
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
16B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 10F
Supply Current
175uA
Termination
SMD/SMT
Watchdog Timer
Yes
Width
1.8mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC10F220T-I/OT Datasheet
Download the complete datasheet for Microchip PIC10F220T-I/OT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

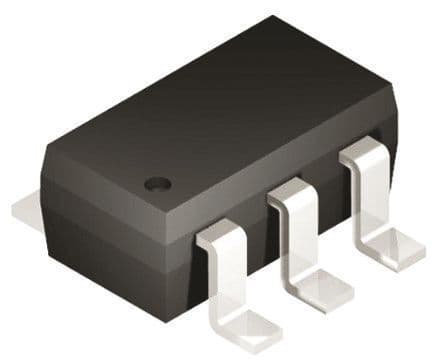

Product Images
