8-bit RISC microcontroller featuring 0.4375KB FLASH memory and 64B RAM. Operates at up to 16MHz with an internal oscillator. Offers 3 ADC channels, 2 PWM channels, and 2 timers/counters. Includes Brown-out Detect/Reset, POR, and WDT peripherals. Packaged in a SOT-23-6 (PDSO6) with 3 I/Os and 4 programmable I/Os. RoHS compliant with a supply voltage range of 1.8V to 3.6V.
Frequency16MHz
PackageSOT-23-6
Current25uA
Quick Jump:
Technical Specifications
Microchip PIC10LF320-I/OT technical specifications.
General
Address Bus Width
8b
Package/Case
SOT-23-6
Core Architecture
PIC
Data Bus Width
8b
Frequency
16MHz
Height
1.3mm
Lead Free
Lead Free
Length
3.1mm
Max Frequency
16MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
3.6V
Memory Size
0.4375KB
Memory Type
FLASH
Min Supply Voltage
1.8V
Number of ADC Channels
3
Number of I/Os
3
Number of Programmable I/O
4
Number of PWM Channels
2
Number of Timers/Counters
2
Oscillator Type
Internal
Packaging
Bag
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
64B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 10F
Supply Current
25uA
Watchdog Timer
Yes
Width
1.8mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC10LF320-I/OT Datasheet
Download the complete datasheet for Microchip PIC10LF320-I/OT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

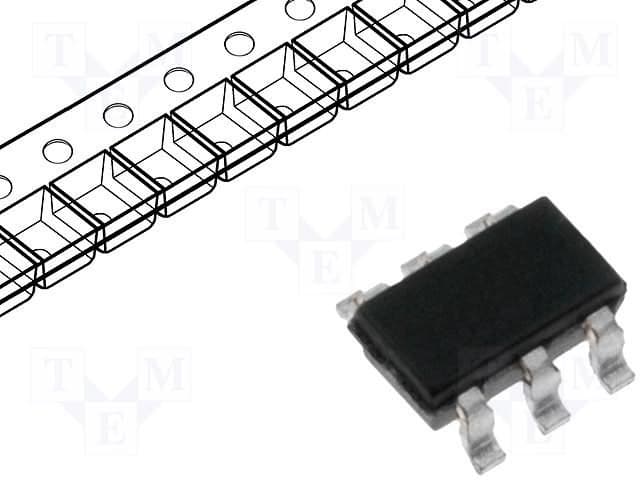

Product Images
