8-bit PIC RISC microcontroller featuring 768 bytes of OTP memory and 25 bytes of RAM. Operates at up to 4MHz with an 8-bit address and data bus. Offers 5 programmable I/O pins and an internal oscillator. Packaged in an 8-pin SOIC with a 3.3V/5V operating voltage range and a maximum supply voltage of 5.5V. Includes POR and WDT peripherals.
Frequency4MHz
PackageSOIC
Current2mA
Quick Jump:
Technical Specifications
Microchip PIC12C508A-04/SM technical specifications.
General
Access Time
4us
Address Bus Width
8b
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Height
1.78mm
Lead Free
Lead Free
Length
5.33mm
Max Frequency
4MHz
Max Operating Temperature
70°C
Max Power Dissipation
700mW
Max Supply Voltage
5.5V
Memory Size
0.75KB
Memory Type
OTP
Min Operating Temperature
0°C
Min Supply Voltage
3V
Number of Bits
8
Number of I/Os
5
Number of Programmable I/O
5
Number of Timers/Counters
1
Number of USB Channels
0
Oscillator Type
Internal
Package Quantity
90
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
25B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 12C
Supply Current
2mA
Watchdog Timer
Yes
Width
5.41mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC12C508A-04/SM Datasheet
Download the complete datasheet for Microchip PIC12C508A-04/SM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

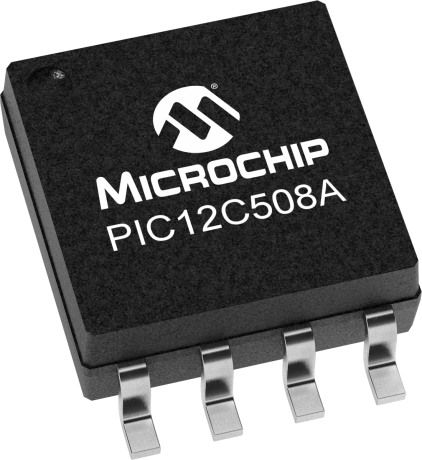

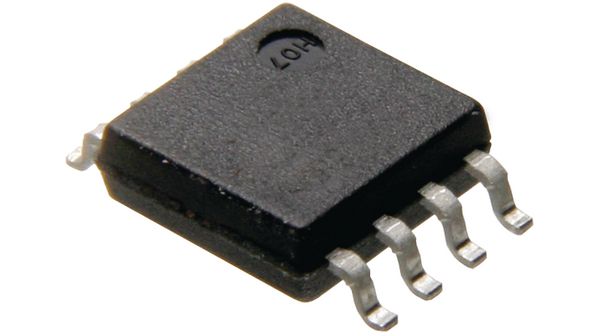

Product Images
