8-bit RISC microcontroller featuring 4MHz operation and 0.75KB OTP memory. This integrated circuit offers 5 programmable I/Os, an internal oscillator, and a single timer/counter. Operating from 3V to 5.5V, it includes POR and WDT peripherals. Packaged in an 8-pin SOIC, this lead-free component is rated for -40°C to 85°C.
Frequency4MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC12C508A-04I/SM technical specifications.
General
Access Time
4us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Height
0.07inch
Lead Free
Lead Free
Length
0.209inch
Max Frequency
4MHz
Max Operating Temperature
85°C
Max Power Dissipation
700mW
Max Supply Voltage
5.5V
Memory Size
0.75KB
Memory Type
OTP
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Number of Bits
8
Number of I/Os
5
Number of Programmable I/O
5
Number of Timers/Counters
1
Number of USB Channels
0
Oscillator Type
Internal
Package Quantity
90
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
25B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 12C
Watchdog Timer
Yes
Width
0.213inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC12C508A-04I/SM Datasheet
Download the complete datasheet for Microchip PIC12C508A-04I/SM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

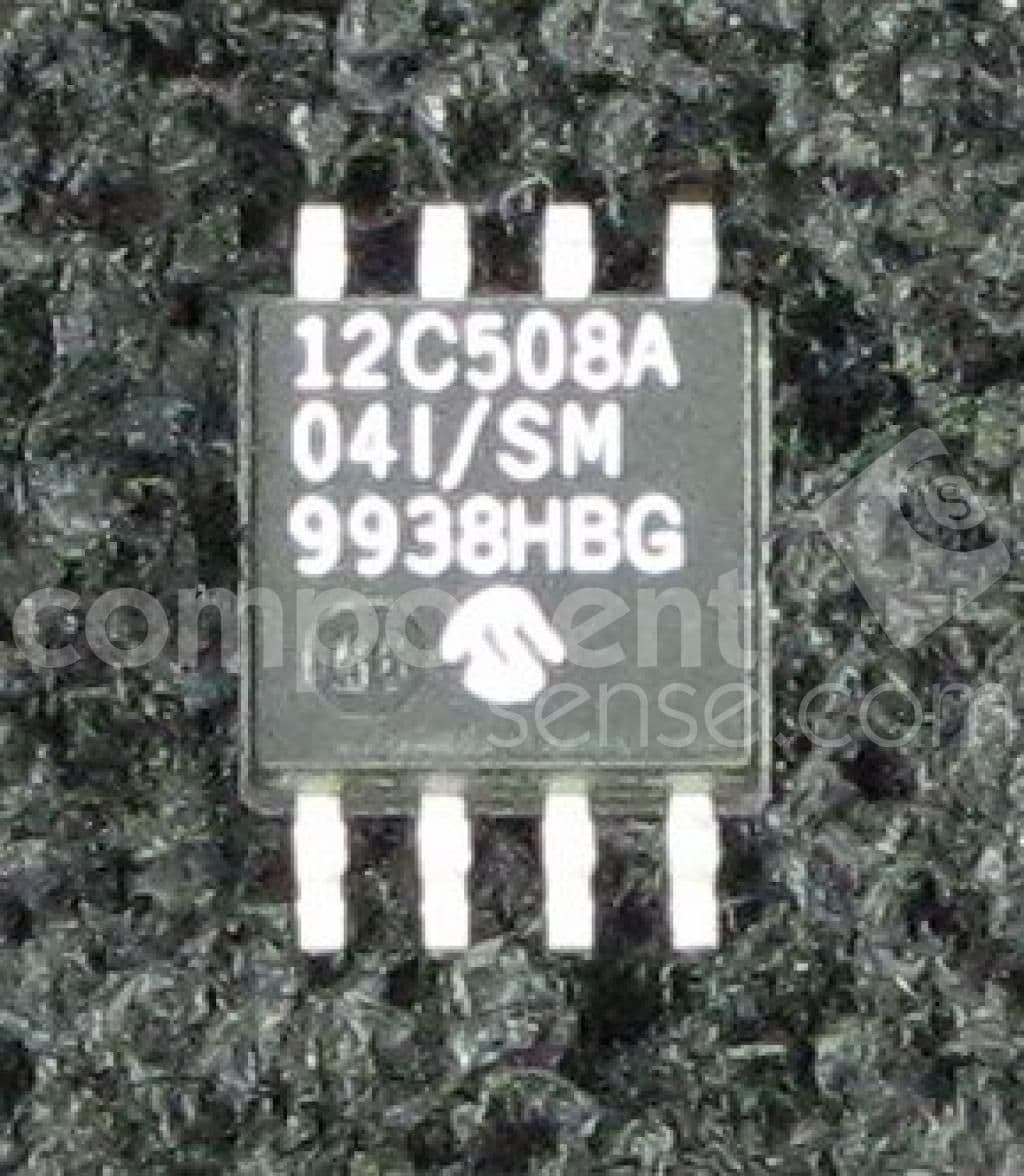

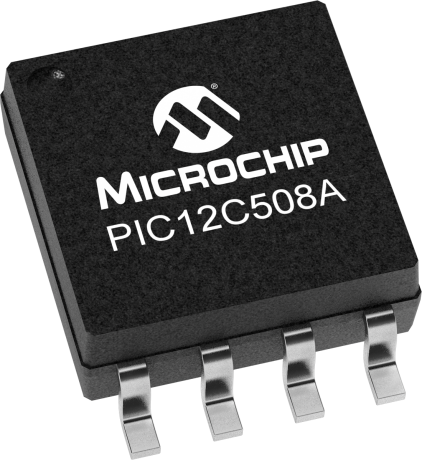

Product Images
