The PIC12C672T-10I/MF is an 8-bit microcontroller from Microchip, featuring a 10MHz maximum frequency and 85°C maximum operating temperature. It has 3.5KB of EPROM memory and 128B of RAM, with 5 programmable I/O and 8 timers/counters. The device is packaged in a DFN surface mount package and is available in tape and reel quantities.
Frequency10MHz
PackageDFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC12C672T-10I/MF technical specifications.
General
| Access Time | 10us |
| Package/Case | DFN |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Max Frequency | 10MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 3.5KB |
| Memory Type | EPROM, , OTP |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Programmable I/O | 5 |
| Number of Timers/Counters | 8 |
| Oscillator Type | Internal |
| Package Quantity | 3300 |
| Packaging | Tape and Reel |
| Peripherals | POR, WDT |
| RAM Size | 128B |
| Series | PIC® 12C |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC12C672T-10I/MF Datasheet
Download the complete datasheet for Microchip PIC12C672T-10I/MF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

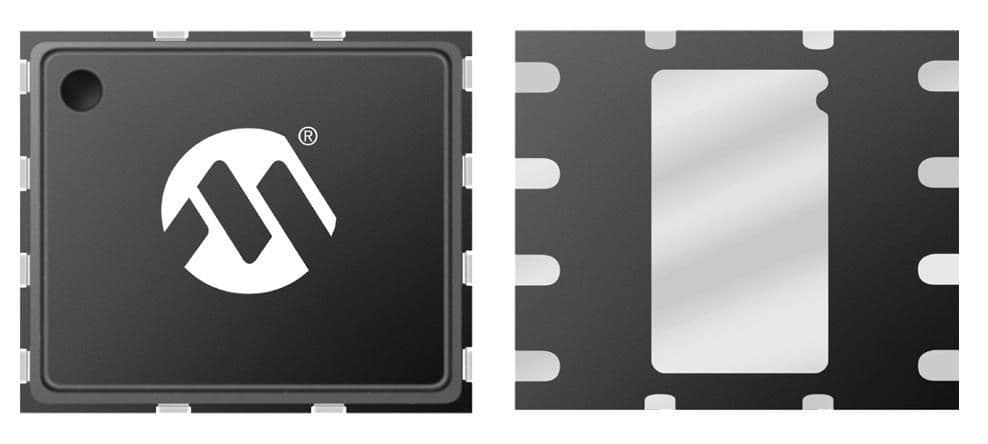

Product Images
