8-bit RISC microcontroller featuring 0.75KB OTP memory and 25B RAM. Operates at up to 4MHz with an internal oscillator and 5 programmable I/Os. Includes POR and WDT peripherals. Packaged in an 8-pin SOIC, this lead-free component supports a supply voltage range of 3V to 5.5V and operates from -40°C to 85°C.
Frequency4MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC12CE518-04I/SM technical specifications.
General
Access Time
4us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Lead Free
Lead Free
Max Frequency
4MHz
Max Operating Temperature
85°C
Memory Size
0.75KB
Memory Type
OTP
Min Operating Temperature
-40°C
Max Power Dissipation
700mW
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Number of I/Os
5
Number of Programmable I/O
5
Number of Timers/Counters
1
Oscillator Type
Internal
Package Quantity
90
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
25B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 12C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC12CE518-04I/SM Datasheet
Download the complete datasheet for Microchip PIC12CE518-04I/SM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

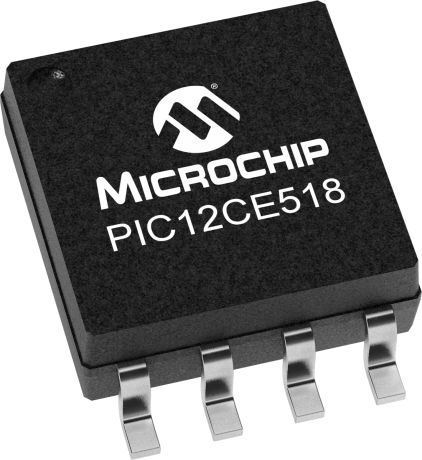

Product Images
