The PIC12F1501T-I/MC is an 8-bit microcontroller from Microchip, featuring a 20MHz core clock speed and operating within a temperature range of -40°C to 85°C. It has a maximum power dissipation of 800mW and supports a supply voltage range of 2.3V to 5.5V. The device has 1.75KB of FLASH memory and 64 bytes of RAM, with 5 I/Os and 3 timers/counters. It is available in a DFN-8 package and is RoHS compliant.
Frequency20MHz
PackageDFN
Quick Jump:
Technical Specifications
Microchip PIC12F1501T-I/MC technical specifications.
General
| Package/Case | DFN |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 20MHz |
| Max Frequency | 20MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 5.5V |
| Memory Size | 1.75KB |
| Memory Type | FLASH |
| Min Supply Voltage | 2.3V |
| Number of I/Os | 5 |
| Number of Programmable I/O | 6 |
| Number of Timers/Counters | 3 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RAM Size | 64B |
| RoHS Compliant | Yes |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC12F1501T-I/MC Datasheet
Download the complete datasheet for Microchip PIC12F1501T-I/MC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

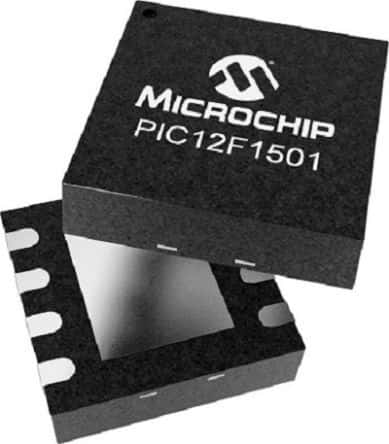

Product Images
