8-bit RISC microcontroller featuring FLASH memory and an 8b data bus. Operates at up to 4MHz with an internal oscillator. Offers 5 I/Os, including 6 programmable, and a single timer/counter. Includes POR and WDT peripherals. Packaged in a lead-free DFN-8 surface mount format, suitable for operation between -40°C and 85°C.
Frequency4MHz
PackageDFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC12F508-I/MC technical specifications.
General
| Access Time | 4us |
| Package/Case | DFN |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 4MHz |
| Interface | RS-232, USB |
| Lead Free | Lead Free |
| Max Frequency | 4MHz |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 5.5V |
| Memory Size | 768B |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of I/Os | 5 |
| Number of Programmable I/O | 6 |
| Number of Timers/Counters | 1 |
| Oscillator Type | Internal |
| Package Quantity | 150 |
| Packaging | Rail/Tube |
| Peripherals | POR, WDT |
| Radiation Hardening | No |
| RAM Size | 25B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® 12F |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC12F508-I/MC Datasheet
Download the complete datasheet for Microchip PIC12F508-I/MC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

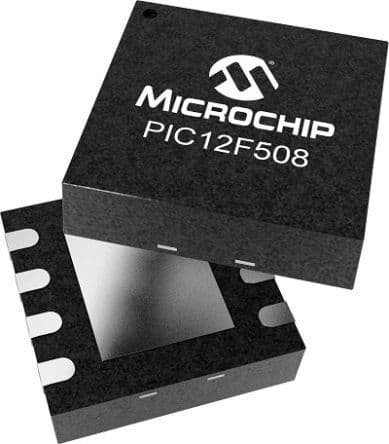

Product Images
