8-bit RISC microcontroller featuring 20 MHz operation and 1.75KB FLASH memory. This surface mount device offers 5 programmable I/Os, 3 timers/counters, and integrated peripherals including PWM, WDT, POR, and Brown-out Detect/Reset. Operating from 2V to 5.5V, it supports RS-232 and USB interfaces and functions within a -40°C to 125°C temperature range. The compact DFN package ensures efficient integration.
Frequency20MHz
PackageDFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC12F615-E/MD technical specifications.
General
Access Time
20us
Package/Case
DFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
RS-232, USB
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
125°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
1.75KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Number of I/Os
5
Number of Programmable I/O
5
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
91
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
64B
RoHS Compliant
Yes
Series
PIC® 12F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC12F615-E/MD Datasheet
Download the complete datasheet for Microchip PIC12F615-E/MD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

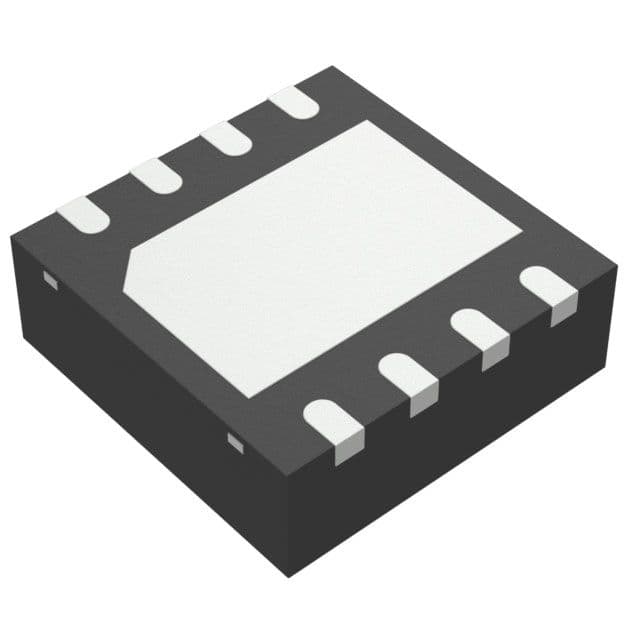

Product Images
