8-bit RISC microcontroller featuring 20MHz operation and 1.75KB FLASH memory. This surface mount device offers 64B RAM, 5 I/O pins, and 2 timers/counters. Integrated peripherals include POR and WDT, with an internal oscillator. The compact PDSO8 package measures 6 x 5 x 0.95mm and is RoHS compliant. Operating voltage ranges from 2V to 5.5V, with an operating temperature range of -40°C to 85°C.
Frequency20MHz
PackageDFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC12F629-I/MF technical specifications.
General
Access Time
20us
Package/Case
DFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
0.95mm
Interface
RS-232, USB
Lead Free
Lead Free
Length
5mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
1.75KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Min Supply Voltage
2V
Mount
Surface Mount
Number of I/Os
5
Number of Programmable I/O
6
Number of Timers/Counters
2
Oscillator Type
Internal
Package Quantity
60
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
64B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 12F
Watchdog Timer
Yes
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC12F629-I/MF Datasheet
Download the complete datasheet for Microchip PIC12F629-I/MF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

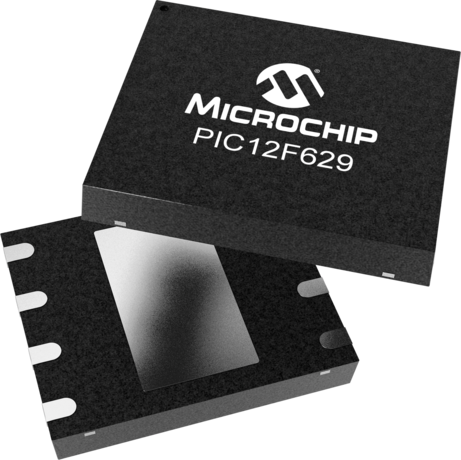

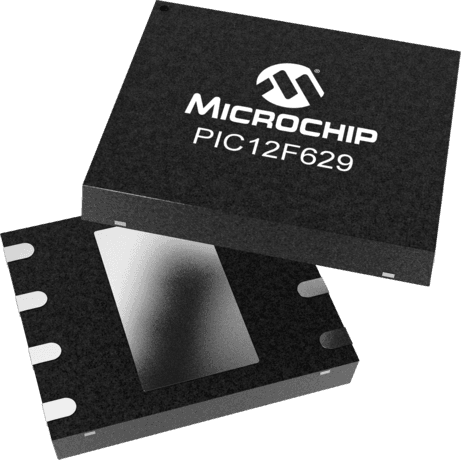

Product Images
