8-bit RISC microcontroller featuring 20 MHz operation and 1.75KB FLASH memory. This surface mount device offers 6 programmable I/Os, 2 timers/counters, and supports SPI and RS-232 interfaces. Operating from 2V to 5.5V, it includes Brown-out Detect/Reset and POR peripherals. Packaged in DFN, it functions across a -40°C to 85°C temperature range.
Frequency20MHz
PackageDFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC12F635T-I/MF technical specifications.
General
Access Time
20us
Package/Case
DFN
Core Architecture
PIC
Data Bus Width
8b
Interface
SPI, RS-232, USB
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
1.75KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Number of I/Os
5
Number of Programmable I/O
6
Number of Timers/Counters
2
Oscillator Type
Internal
Package Quantity
3300
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, WDT
Radiation Hardening
No
RAM Size
64B
RoHS Compliant
Yes
Series
PIC® 12F
Compliance
RoHS
Compliant
Datasheet
Microchip PIC12F635T-I/MF Datasheet
Download the complete datasheet for Microchip PIC12F635T-I/MF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

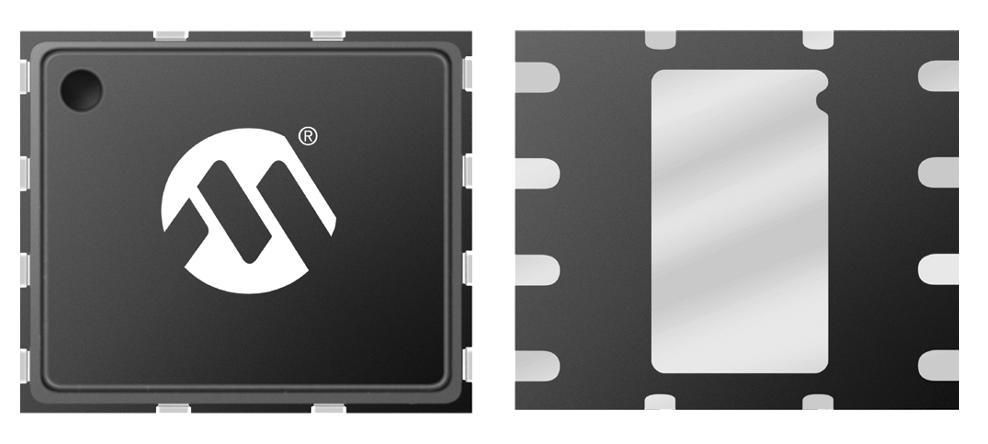

Product Images
