8-bit RISC microcontroller featuring 3.5KB FLASH memory and 128B RAM. Operates at up to 20MHz with an internal oscillator. Includes 6 programmable I/Os, 3 timers/counters, 1 PWM channel, and 4 ADC channels with 1 converter. Supports RS-232 and USB interfaces, with a DFN-8 package (4x4x0.95mm) for surface mounting. Operating voltage range is 4.5V to 5.5V, with a maximum power dissipation of 800mW.
Frequency20MHz
PackageDFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC12F683-I/MD technical specifications.
General
Access Time
20us
Package/Case
DFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
0.95mm
Interface
RS-232, USB
Lead Free
Lead Free
Length
4mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
FLASH,
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
4
Number of Bits
8
Number of I/Os
6
Number of Programmable I/O
6
Number of PWM Channels
1
Number of Timers/Counters
3
Number of USB Channels
1
Operating Supply Voltage
5V
Oscillator Type
Internal
Package Quantity
91
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC12F683-I/MD Datasheet
Download the complete datasheet for Microchip PIC12F683-I/MD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

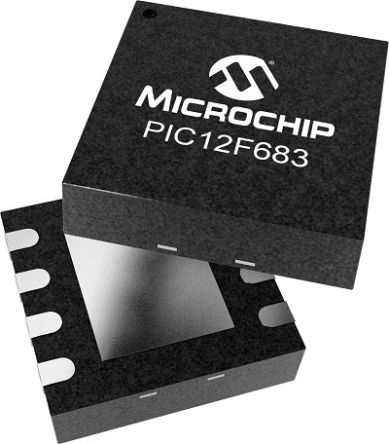

Product Images
