8-bit RISC microcontroller featuring 3.5KB FLASH memory and 128B RAM. Operates at up to 20MHz with an 8b data bus. Includes 4 ADC channels, 5 I/Os, 3 timers, and 1 PWM channel. Supports RS-232 and USB interfaces. Packaged in a 5.99mm x 4.92mm x 0.95mm DFN surface mount package.
Frequency20MHz
PackageDFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC12F683-I/MF technical specifications.
General
Access Time
20us
Package/Case
DFN
Core Architecture
PIC
Data Bus Width
8b
Density
3.5KB
Frequency
20MHz
Height
0.95mm
Interface
RS-232, USB
Lead Free
Lead Free
Length
4.92mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
FLASH,
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of ADC Channels
4
Number of Bits
8
Number of I/Os
5
Number of Programmable I/O
6
Number of PWM Channels
1
Number of Timers/Counters
3
Operating Supply Voltage
5V
Oscillator Type
Internal
Package Quantity
60
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 12F
Termination
SMD/SMT
Watchdog Timer
Yes
Width
5.99mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC12F683-I/MF Datasheet
Download the complete datasheet for Microchip PIC12F683-I/MF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

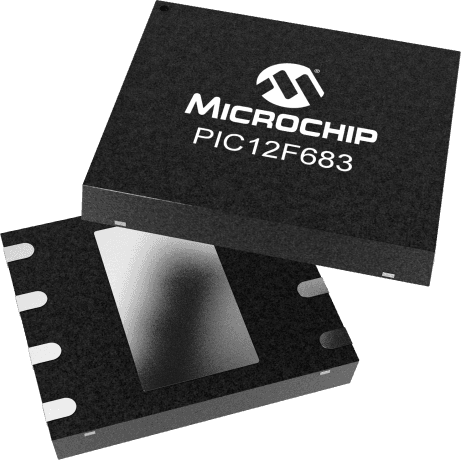

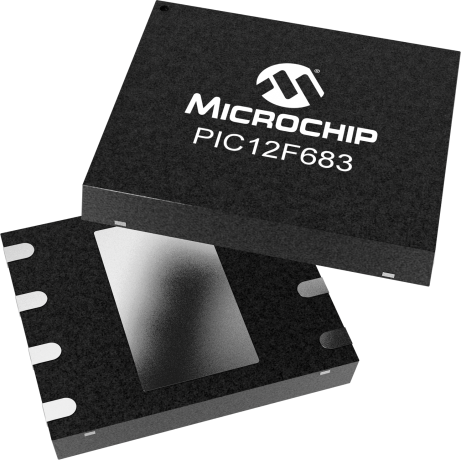

Product Images
