8-bit PIC RISC microcontroller featuring 3.5KB Flash memory and 128B RAM. Operates at up to 20MHz with an 8-bit address and data bus. Includes 4 analog input channels, 6 programmable I/Os, 1 PWM channel, and 3 timers. Supports RS-232 and USB interfaces, with an internal oscillator. Packaged in an 8-pin SOIC for surface mounting, operating from 4.5V to 5.5V.
Frequency20MHz
PackageSOIC
Current220uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC12F683-I/SN technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Density
3.5KB
Frequency
20MHz
Height
1.5mm
Interface
RS-232, USB
Lead Free
Lead Free
Length
4.9mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
FLASH,
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
4
Number of Bits
8
Number of I/Os
6
Number of Programmable I/O
6
Number of PWM Channels
1
Number of Timers/Counters
3
Number of UART Channels
0
Oscillator Type
Internal
Package Quantity
100
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 12F
Supply Current
220uA
Termination
SMD/SMT
Watchdog Timer
Yes
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC12F683-I/SN Datasheet
Download the complete datasheet for Microchip PIC12F683-I/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

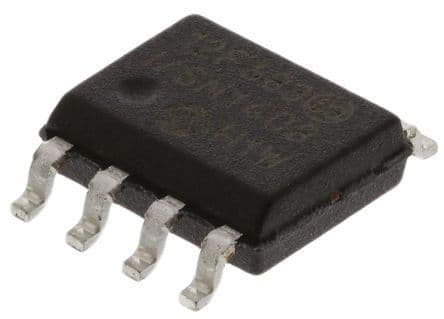

Product Images
