8-bit RISC microcontroller featuring 20MHz operation and 1.75KB FLASH memory. This integrated circuit offers 5 programmable I/O pins, 3 timers/counters, and an internal oscillator. Supporting RS-232 and USB interfaces, it operates from 2V to 5.5V with a maximum power dissipation of 800mW. Packaged in a lead-free PDIP, it includes peripherals like Brown-out Detect/Reset, POR, PWM, and WDT.
Frequency20MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC12HV615-E/P technical specifications.
General
Access Time
20us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
RS-232, USB
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
125°C
Memory Size
1.75KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Min Supply Voltage
2V
Mount
Through Hole
Number of I/Os
5
Number of Programmable I/O
5
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
60
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
64B
RoHS Compliant
Yes
Series
PIC® 12F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC12HV615-E/P Datasheet
Download the complete datasheet for Microchip PIC12HV615-E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

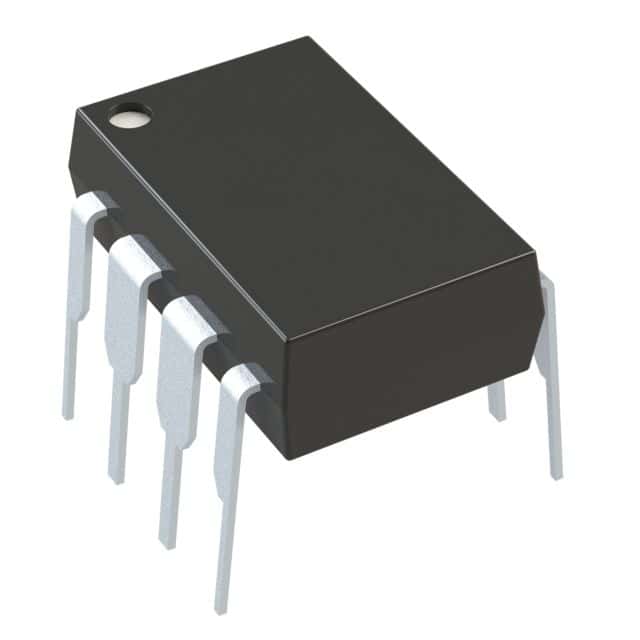

Product Images
