8-bit RISC microcontroller featuring 3.5KB OTP memory and 128B RAM. Operates at up to 4MHz with an 8-bit data bus and 5 I/O pins. Includes POR and WDT peripherals, with an internal oscillator. Packaged in an SOIC case, this lead-free and RoHS compliant component supports supply voltages from 2.5V to 5.5V.
Frequency4MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC12LC672T-04/SM technical specifications.
General
Access Time
4us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Lead Free
Lead Free
Max Frequency
4MHz
Max Operating Temperature
70°C
Max Power Dissipation
700mW
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
OTP
Min Operating Temperature
0°C
Min Supply Voltage
2.5V
Number of I/Os
5
Number of Programmable I/O
5
Number of Timers/Counters
8
Oscillator Type
Internal
Package Quantity
2100
Packaging
Tape and Reel
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
128B
RoHS Compliant
Yes
Series
PIC® 12C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC12LC672T-04/SM Datasheet
Download the complete datasheet for Microchip PIC12LC672T-04/SM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

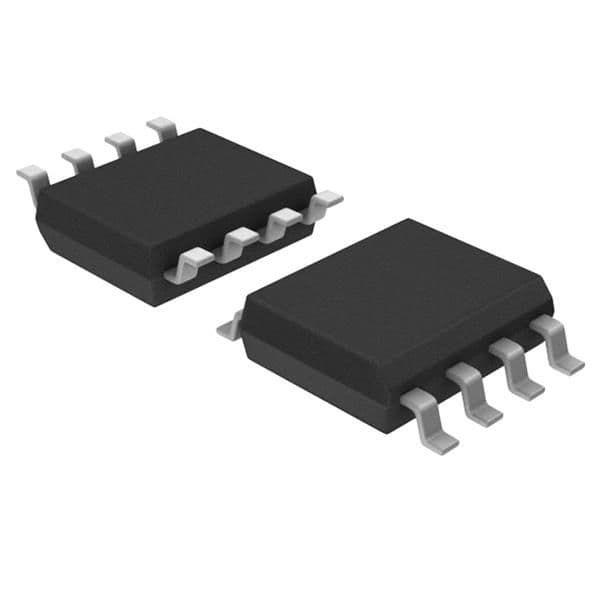

Product Images
