8-bit RISC microcontroller featuring a 4MHz maximum clock speed and 768B of OTP/EPROM memory. This surface mount device operates from a 2.5V to 5.5V supply, with 5 programmable I/O pins and an internal oscillator. Includes POR and WDT peripherals, with a maximum power dissipation of 700mW. Packaged in an 8-pin SOIC, it is RoHS compliant and suitable for operation between -40°C and 85°C.
Frequency4MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC12LCE518T-04I/SN technical specifications.
General
Access Time
4us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Lead Free
Lead Free
Max Frequency
4MHz
Max Operating Temperature
85°C
Max Power Dissipation
700mW
Max Supply Voltage
5.5V
Memory Size
768B
Memory Type
EPROM, , OTP
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Programmable I/O
5
Number of Timers/Counters
8
Oscillator Type
Internal
Package Quantity
3300
Packaging
Tape and Reel
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
25B
RoHS Compliant
Yes
Series
PIC® 12C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC12LCE518T-04I/SN Datasheet
Download the complete datasheet for Microchip PIC12LCE518T-04I/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

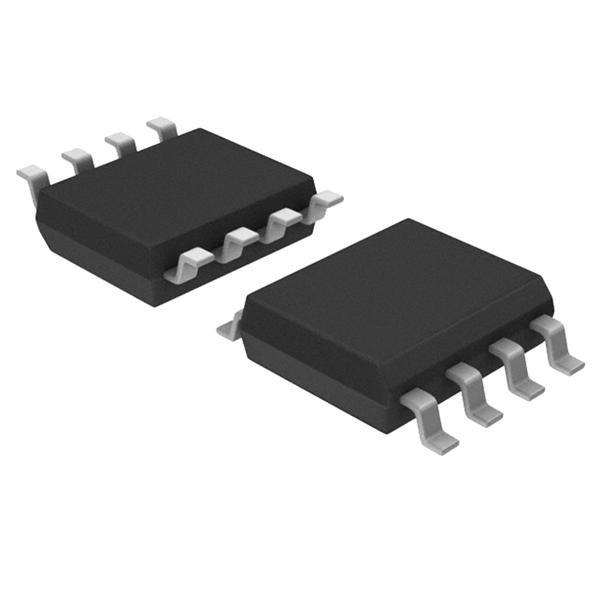

Product Images
