8-bit RISC microcontroller featuring 20 MHz operation and 1.75KB FLASH memory. This PIC microcontroller offers 64B RAM, 5 programmable I/Os, and 3 timers/counters. Operating from 2.5V to 3.6V, it includes internal oscillator, Brown-out Detect/Reset, POR, PWM, and WDT peripherals. Packaged in an 8-pin SOIC, it operates across a -40°C to 85°C temperature range.
Frequency20MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC12LF1501T-I/SN technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
3.6V
Memory Size
1.75KB
Memory Type
FLASH
Min Supply Voltage
2.5V
Number of I/Os
5
Number of Programmable I/O
5
Number of Timers/Counters
3
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
64B
RoHS Compliant
Yes
Series
PIC® 12F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC12LF1501T-I/SN Datasheet
Download the complete datasheet for Microchip PIC12LF1501T-I/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

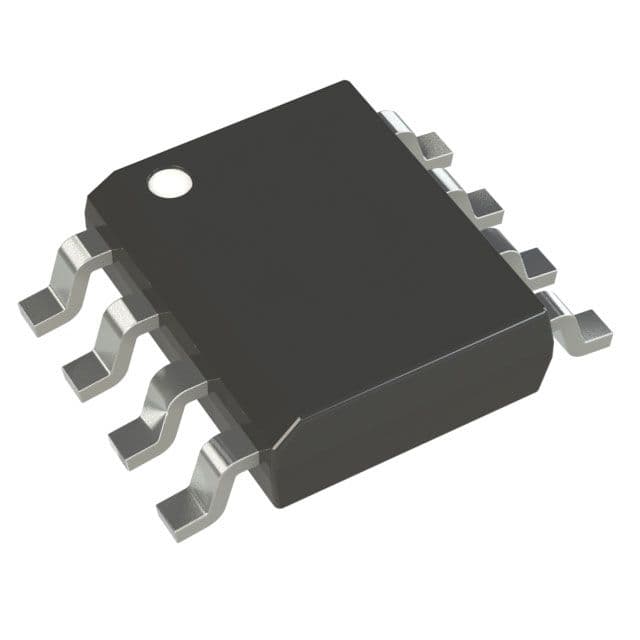

Product Images
