8-bit RISC microcontroller featuring a PIC core architecture and 32MHz maximum frequency. Offers 1.75KB FLASH memory, 128B RAM, and 6 programmable I/Os. Includes 6 timers/counters and peripherals such as Brown-out Detect/Reset, POR, PWM, and WDT. Operates from a 3.6V supply voltage with an internal oscillator, housed in a 3.9mm x 4.9mm x 1.75mm SOIC package. Suitable for operation between -40°C and 85°C.
Frequency32MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC12LF1571T-I/SN technical specifications.
General
| Package/Case | SOIC |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Height | 1.75mm |
| Length | 4.9mm |
| Max Frequency | 32MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 1.75KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Number of I/Os | 6 |
| Number of Programmable I/O | 6 |
| Number of Timers/Counters | 6 |
| Operating Supply Voltage | 3.6V |
| Oscillator Type | Internal |
| Package Quantity | 3300 |
| Packaging | Tape and Reel |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 128B |
| RoHS Compliant | Yes |
| Series | PIC® 12F |
| Watchdog Timer | Yes |
| Weight | 0.019048oz |
| Width | 3.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC12LF1571T-I/SN Datasheet
Download the complete datasheet for Microchip PIC12LF1571T-I/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

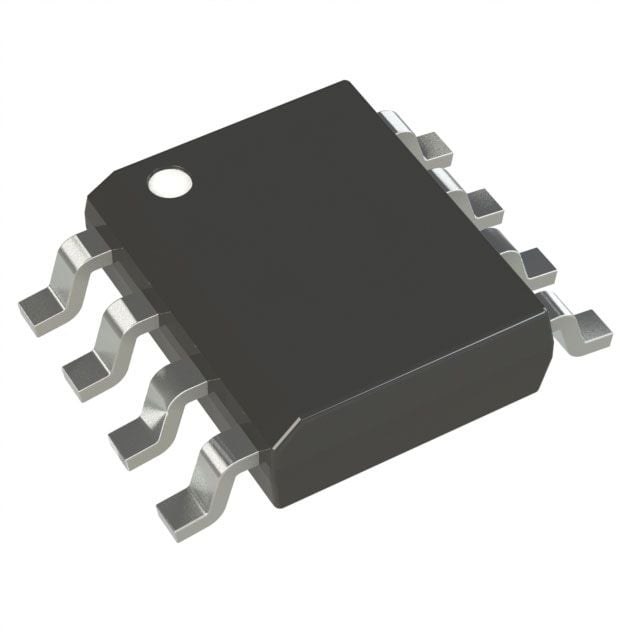

Product Images
