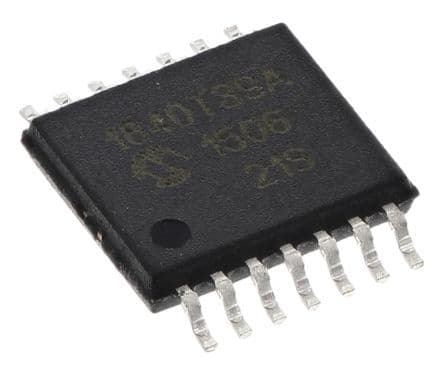

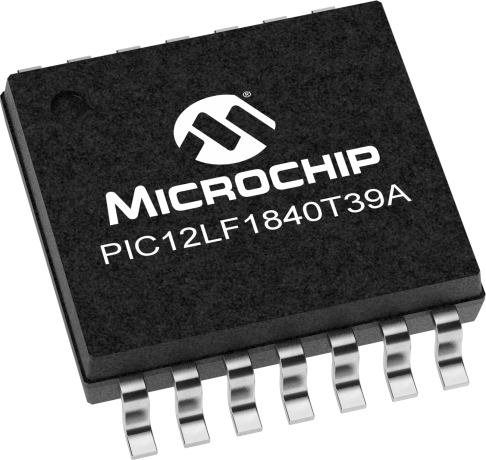

8-bit RISC microcontroller featuring a 32MHz core frequency and 7KB of FLASH memory. Offers 256 bytes of RAM, 4 ADC channels, and 6 programmable I/O pins. Supports I2C, SPI, and USART interfaces, with 3 timers and PWM peripheral. Operates from 1.8V to 3.6V supply, with a temperature range of -40°C to 85°C. Packaged in a TSSOP with dimensions of 5.1mm length, 4.5mm width, and 1.05mm height.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip PIC12LF1840T39A-I/ST datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TSSOP |
| Core Architecture | PIC |
| Current - Transmitting | 16.5mA |
| Data Bus Width | 8b |
| Data Rate | 100Kbps |
| Frequency | 32MHz |
| Height | 1.05mm |
| Interface | I2C, SPI, USART |
| Lead Free | Lead Free |
| Length | 5.1mm |
| Max Frequency | 32MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 7KB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.8V |
| Number of ADC Channels | 4 |
| Number of I/Os | 5 |
| Number of Programmable I/O | 6 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 3 |
| Number of USB Channels | 1 |
| Packaging | Rail/Tube |
| Peripherals | PWM |
| RAM Size | 256B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® |
| Watchdog Timer | Yes |
| Width | 4.5mm |
| RoHS | Compliant |
