8-bit RISC microcontroller featuring a PIC core architecture and 4MHz operating frequency. This OTP microcontroller offers 0.75KB of memory, 25 Bytes of RAM, and 12 programmable I/O pins. Includes a watchdog timer and peripherals like POR. Operates from 3V to 6.25V with a maximum power dissipation of 800mW. Packaged in an 18-pin SOIC (PDSO18) with an access time of 4µs.
Frequency4MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC16C54-RC/SO technical specifications.
General
Access Time
4us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Max Frequency
4MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
800mW
Max Supply Voltage
6.25V
Memory Size
0.75KB
Memory Type
OTP
Min Supply Voltage
3V
Number of I/Os
12
Number of Programmable I/O
12
Number of Timers/Counters
1
Oscillator Type
External
Package Quantity
42
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
25B
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Not CompliantNo
Datasheet
Microchip PIC16C54-RC/SO Datasheet
Download the complete datasheet for Microchip PIC16C54-RC/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

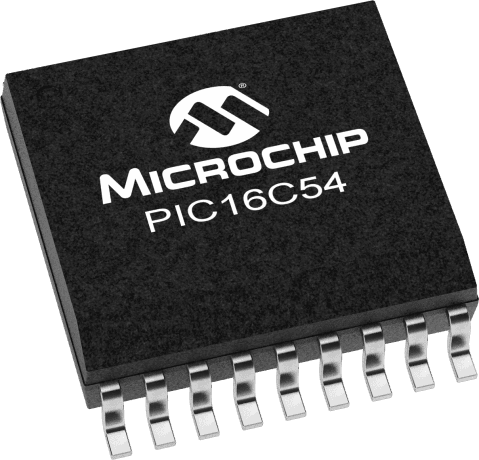

Product Images
