8-bit RISC microcontroller featuring a 4MHz clock speed and 0.75KB of OTP memory. This integrated circuit offers 12 programmable I/O pins, an 8-bit address and data bus, and a single timer/counter. Operating from a 4.5V to 5.5V supply, it includes Power-On Reset (POR) and Watchdog Timer (WDT) peripherals. Packaged in a PDIP-18 DIP-18 configuration, this RoHS compliant component operates within a temperature range of 0°C to 70°C.
Frequency4MHz
PackagePDIP
Current2mA
Quick Jump:
Technical Specifications
Microchip PIC16C54C-04/P technical specifications.
General
Access Time
4us
Address Bus Width
8b
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Height
3.68mm
Lead Free
Lead Free
Length
22.99mm
Max Frequency
4MHz
Max Operating Temperature
70°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
0.75KB
Memory Type
OTP
Min Operating Temperature
0°C
Min Supply Voltage
4.5V
Number of Bits
8
Number of I/Os
12
Number of Programmable I/O
12
Number of Timers/Counters
1
Number of USB Channels
0
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
25
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
25B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16C
Supply Current
2mA
Watchdog Timer
Yes
Width
6.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C54C-04/P Datasheet
Download the complete datasheet for Microchip PIC16C54C-04/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

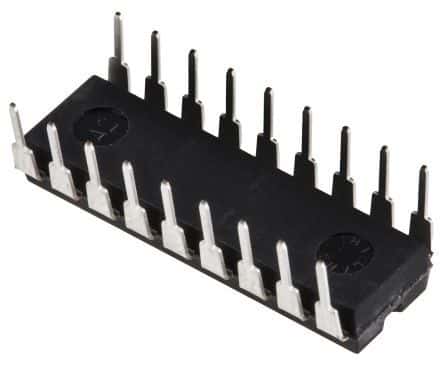

Product Images
