8-bit RISC microcontroller featuring 4MHz operation and 0.75KB OTP memory. This integrated circuit offers 12 programmable I/O pins, one timer/counter, and an external oscillator. It operates within a 4.5V to 5.5V supply range, with a maximum power dissipation of 800mW. Packaged in an 18-pin PDIP, this lead-free component supports a temperature range of -40°C to 85°C and includes POR and WDT peripherals.
Frequency4MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC16C54C-04I/P technical specifications.
General
Access Time
4us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Height
3.68mm
Lead Free
Lead Free
Length
22.99mm
Max Frequency
4MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
0.75KB
Memory Type
OTP
Min Supply Voltage
4.5V
Number of I/Os
12
Number of Programmable I/O
12
Number of Timers/Counters
1
Oscillator Type
External
Package Quantity
25
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
25B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Width
6.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C54C-04I/P Datasheet
Download the complete datasheet for Microchip PIC16C54C-04I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

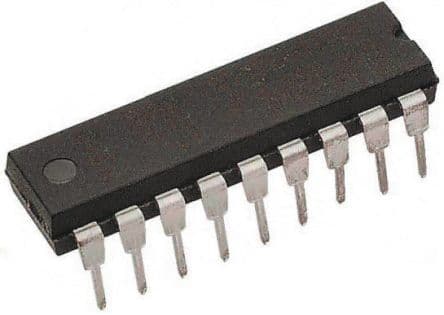

Product Images
